Crane End Carriages Engineered for Reliable Crane Travel
CRANE END CARRIAGES
Standard and Customized End Carriage Solutions for Different Crane Systems

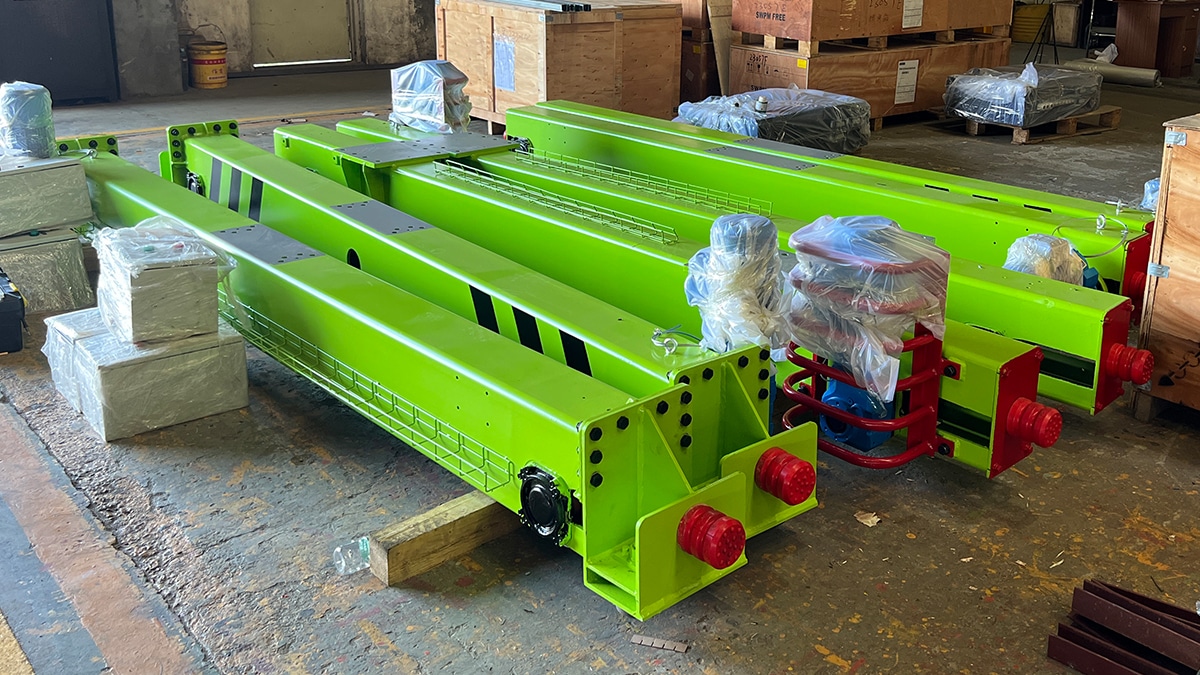

Guanhui Crane End Carriages, also known as End Beams or End Trucks, are essential traveling components designed to support crane structures and enable smooth movement along the crane runway.

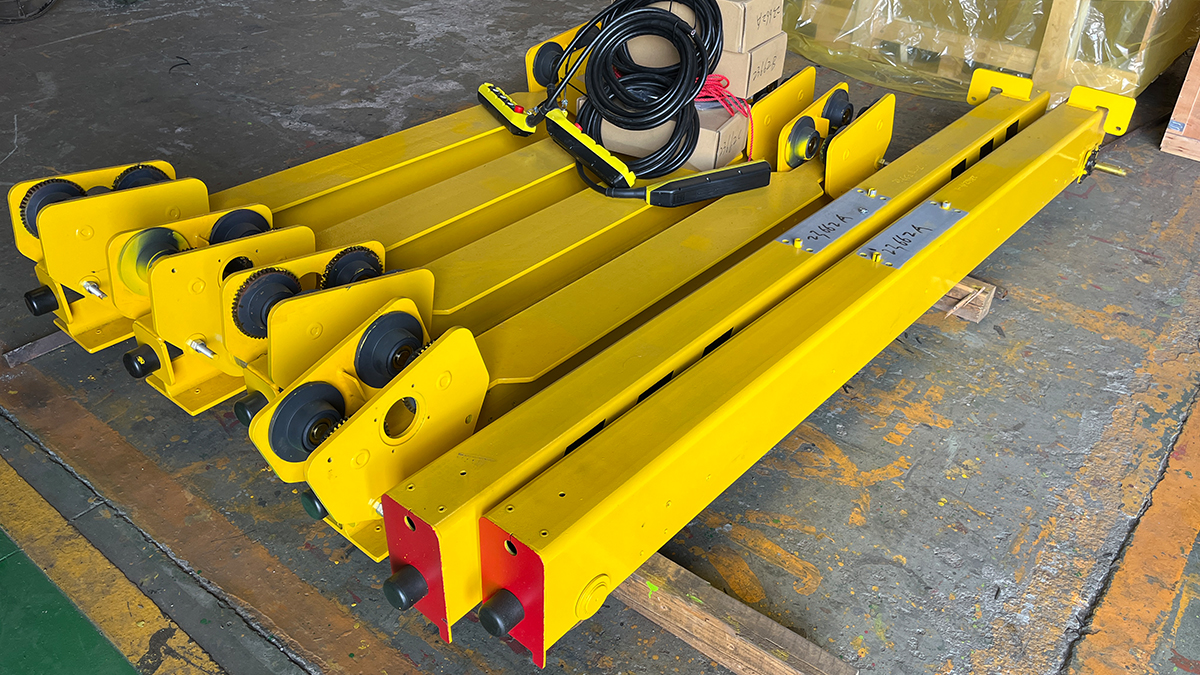

Designed for a wide range of lifting equipment, our end carriages can be used in single girder overhead cranes, double girder overhead cranes, gantry cranes, semi-gantry cranes, hoist trolleys, and customized lifting systems.
From structural design and wheel configuration to drive systems and connection methods, each end carriage can be configured according to your crane’s load capacity, dimensions, travel requirements, and actual working conditions.
Whether you need an end carriage for a new crane project, equipment integration, or replacement of an existing component, Guanhui can provide a suitable solution based on your technical requirements.
HOIST & CRANECOMPONENTS
PRODUCT CONFIGURATIONS
End Carriage Configurations for Different Crane Applications
Every crane system has different structural and operational requirements. Guanhui provides multiple end carriage configurations to match different crane designs, load capacities, and traveling conditions.
CONNECTION TYPE

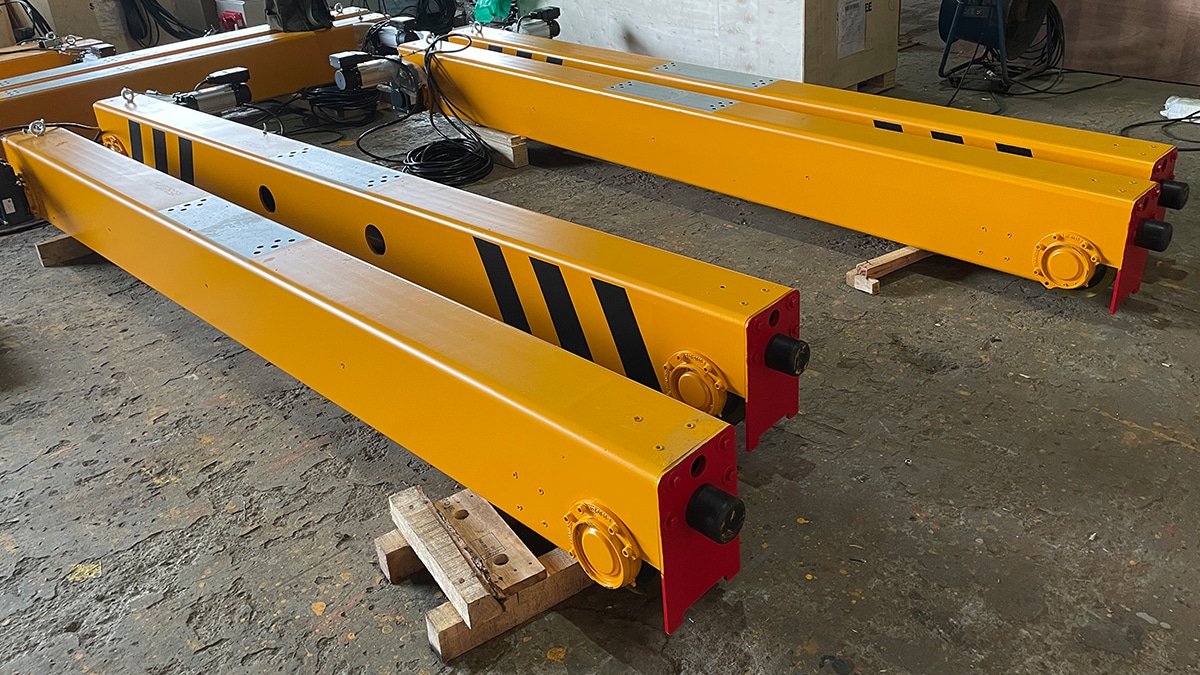

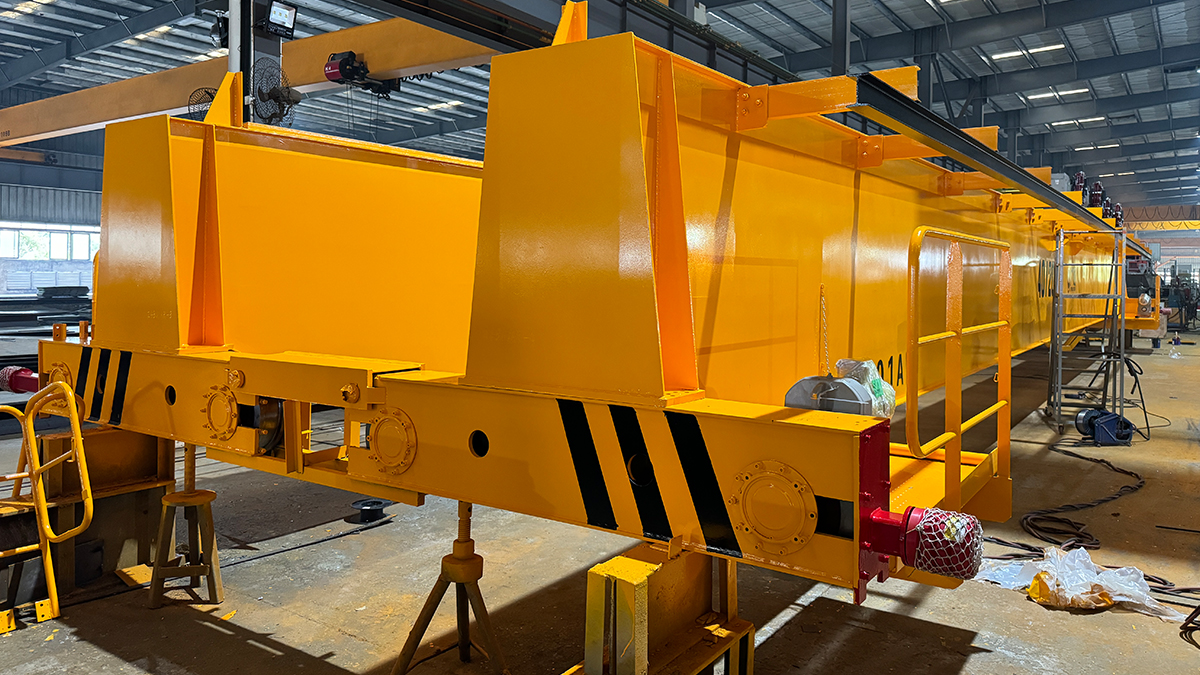

Designed to connect with the crane main girder or supporting structure, connection-type end carriages provide a practical solution for various overhead crane and lifting equipment configurations.
Connection dimensions and structural arrangements can be configured according to the specific crane design.
BOGIE TYPE

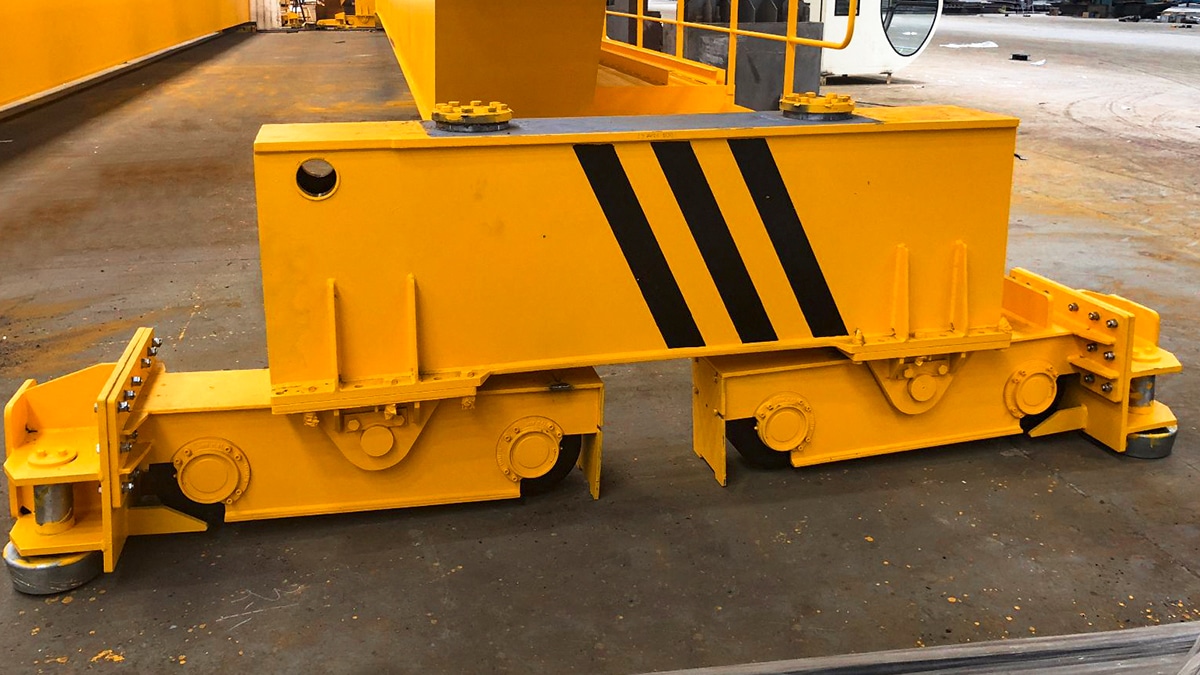

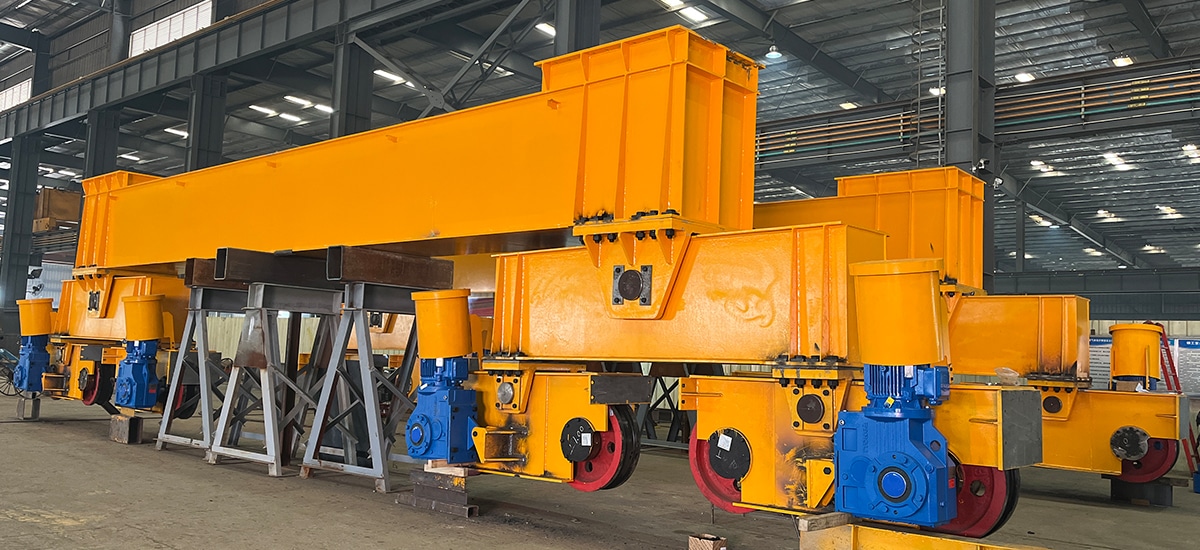

Designed for applications requiring higher load capacity, improved load distribution, or enhanced traveling stability, bogie-type end carriages can be configured with multiple wheels to meet demanding operating conditions.
Suitable for larger cranes and customized heavy-duty lifting systems.
CUSTOMIZED CONFIGURATION
End carriage dimensions, wheel quantity, wheel diameter, wheelbase, connection structure, and drive arrangement can be customized according to your crane design and operational requirements.
KEY COMPONENTS
Built Around the Components That Keep Your Crane Moving
Reliable crane travel depends on more than the end beam structure itself. Our end carriages are designed as integrated traveling assemblies, with key components selected and configured according to the actual crane application.
STRUCTURAL FRAME
The structural frame is designed to support the crane and transfer operational loads during traveling.
TRAVELING WHEELS
Different wheel sizes and configurations are available according to the crane type, load capacity, rail conditions, and operational requirements.
DRIVE SYSTEM

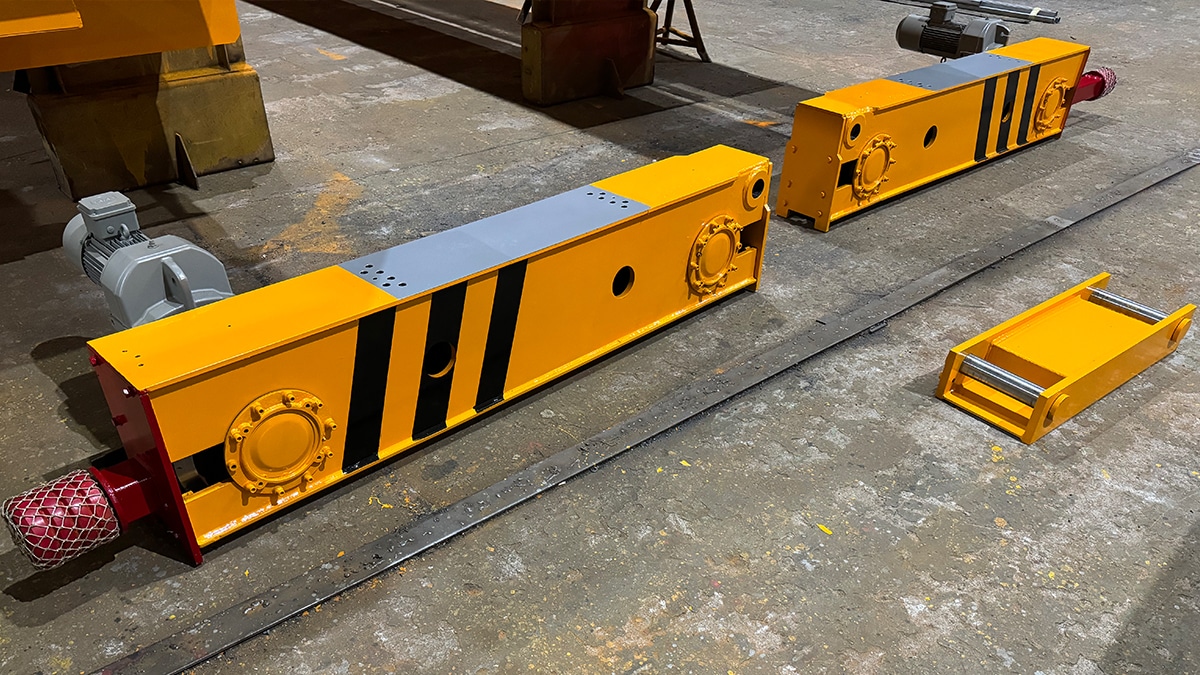

Motor and gearbox systems provide the power required for crane traveling, supporting smooth and reliable movement during operation.
CONNECTION SYSTEM
Connection dimensions and installation methods can be adapted to different crane girders and structural configurations.
CUSTOMIZED SOLUTIONS
Designed Around Your Crane, Load and Working Conditions
A standard end carriage may not always meet the requirements of an existing crane or a specialized lifting system. Guanhui provides customized end carriage solutions based on the actual technical requirements of your project.
We can configure key parameters including:
CRANE TYPE
Order What Your Project Actually Requires
WHEEL CONFIGURATION
Wheel quantity, diameter, wheelbase, and arrangement can be selected according to load and rail conditions.
CONNECTION DIMENSIONS
Customized to match the crane main girder, crane frame, or existing equipment structure.
DRIVE ARRANGEMENT
Travel drive systems can be configured according to required speed and operating conditions.
WORKING CONDITIONS
Solutions can be adapted according to different operating environments, duty requirements, and installation conditions.
Our engineering team works with customers to develop end carriage solutions that fit the complete crane system rather than simply supplying a standard component.
WHY CHOOSE GUANHUI
More Than an End Carriage. A Reliable Part of Your Crane System.
Choosing the right end carriage is essential to the stability, traveling performance, and long-term operation of the complete crane system.
- WIDE CRANE COMPATIBILITY
- CONFIGURED FOR YOUR APPLICATION
- INTEGRATED TRAVELING SOLUTION
- SUPPORT FOR REPLACEMENT AND NEW PROJECTS
- NE-STOP MANUFACTURING CAPABILITY
Tell Us Your Requirements. We'll Help Configure the Right Solution.
Send us your crane specifications, drawings, or project requirements, and our team will help develop an end carriage solution that fits your equipment.
